Using OpenCV to solve a sudoku

A small Python script that solves sudoku from images

By Quentin Golsteyn Python • Posted December 5, 2020

I recently acquired a pretty fun new hobby, solving sudokus. In that process, I discovered a new YouTube channel, Cracking the Cryptic, which is releasing two new sudoku puzzles every day. I have been diligently attempting these new puzzles and practicing easier puzzles on a sudoku book I have at home.

While struggling to solve another sudoku (rated as "easy" which is probably incorrect), I thought of another computer vision project: could my computer solve sudoku from a picture of one?

Solving the sudoku and printing the solution in the original image.

I want to be able to recognize the sudoku in an image, adjust for perspective, identify the numbers in the grid, and solve the sudoku. I then want to print the solution back into the image, adjusting for perspective. This article will cover the algorithm I created to process images of sudokus. It consists of the following steps:

Find the sudoku grid in an image
Perform a perspective warp to create a top-down view of the sudoku
Split the sudoku image into its cells
Identify the number in each cell (or lack thereof)
Identify the row and column number for each cell
Solve the sudoku
Write the result in the original image, adjusting for perspective

Getting started

This project will require OpenCV, sklearn, and numpy installed on your machine.

pip install opencv-python numpy sklearn

SHELL

Let's start by importing our dependencies:

import cv2
import numpy as np
import glob
import os

PYTHON

All images are taken from one sudoku book. If you use this code on any other sudoku grid, you may need to adjust some parameters.✱I will be processing images in a folder. I process images one by one, first resizing them to a more manageable size to help with processing. The code below will form the main loop of this image processing task. I will be processing images in a folder.

if __name__ == "__main__":
for file_path in glob.glob("in/*.jpg"):
    img = cv2.imread(file_path)

    # Ensure we keep the aspect ratio of the image
    ratio = img.shape[0] / img.shape[1]
    img = cv2.resize(img, (1100, int(1100 * ratio)))

    valid, img_grid, M = find_grid(img)

    # If no grid were found, give up
    if valid == False:
        continue

    # Generate a 2D array representation of the grid present in the image
    cells = find_cells(img_grid)
    cells_with_value = find_cell_values(cells)
    grid, grid_meta = get_sudoku_grid(cells_with_value)

    # Solve the sudoku
    empty_cells = [(i, j) for i in range(9) for j in range(9) if grid[i][j] == 0]
    is_grid_solved = solve(grid, empty_cells)

    # Print the solution back in the image
    if is_grid_solved:
        img_out = print_solution(img, img_grid, M, grid, grid_meta)
        cv2.imwrite(f"out/{os.path.split(file_path)[-1]}", img_out)

PYTHON

The main code loop

Finding the sudoku grid in an image

I am looking for a large square consisting of 81 smaller squares. This square can be taken from any perspective. In other words, I am looking for a quadrilateral in an image.

Example of sudoku grids from various perspective.

Looking for quadrilaterals

I will be using OpenCV contours to find quadrilaterals. After thresholding the image (using adaptive thresholding), I can generate a list of contours present in the image. I then need to filter these contours to only those that closely resemble a quadrilateral.

OpenCV contour methods?cv2.arcLength and cv2.approxPolyDP are used to detect quadrilaterals. cv2.arcLength returns the length of the perimeter of a contour while

An example of the Ramer–Douglas–Peucker algorithm

cv2.approxPolyDP uses the Ramer–Douglas–Peucker algorithm, a recursive algorithm that performs a curve simplification by returning a similar curve with fewer points. Wikipedia✱cv2.approxPolyDP returns a contour forming an approximation of the contour passed as argument. The approximation is controlled by a parameter,

\epsilon

, which defines the maximum variance between the perimeter of the approximation and the original contour. cv2.approxPolyDP is useful when trying to find contours that approximates a quadrilateral. If the approximate contour has four points while

\epsilon

is kept to a low value (here

1\%

of the perimeter of the original contour), I know I have a quadrilateral.

To verify if I found the contour of the sudoku grid (and not the contour of a cell of the grid for example), I check that the contour contains 81 smaller quadrilaterals. If this is the case, it is very likely that I found the sudoku grid.

# Approximate the contour in order to determine whether the contour is a quadrilateral
peri = cv2.arcLength(c, True)
approx = cv2.approxPolyDP(c, 0.01 * peri, True)

# We are looking for a contour that is roughly a quadrilateral
if len(approx) == 4:
    warped, M = four_point_transform(
        thresh,
        np.array([approx[0][0], approx[1][0], approx[2][0], approx[3][0]]),
    )

    cells = find_cells(warped)

    # We can be fairly certain we found a sudoku grid if the grid contains 81 cells
    if len(cells) == 81:
        return True, warped, M

PYTHON

The method to locate a sudoku grid

Perspective correction

Basic concepts of the homography explained with code?Two images of the same planar surface are related by a homography. If we can determine the plane of the sudoku grid, we can create a new image where the grid appears directly below the camera (ie. on the image plane). This process is also known as perspective removal.

To find a homography matrix, I need to find four corresponding points shared between the two images. I already have four points from our initial image when I located the sudoku grid. The corresponding points in the perspective corrected image are the four corners of the image.

OpenCV allows us to calculate a homography matrix and apply the perspective correction to an image.

# rect contains the four points of the sudoku grid square in the original image
# dst contains the four points representing  the four corners of the warped image

M = cv2.getPerspectiveTransform(rect, dst)
warped = cv2.warpPerspective(img, M, (max_width + 10, max_height + 10))

PYTHON

Using OpenCV to find the homography matrix and apply it to the image.

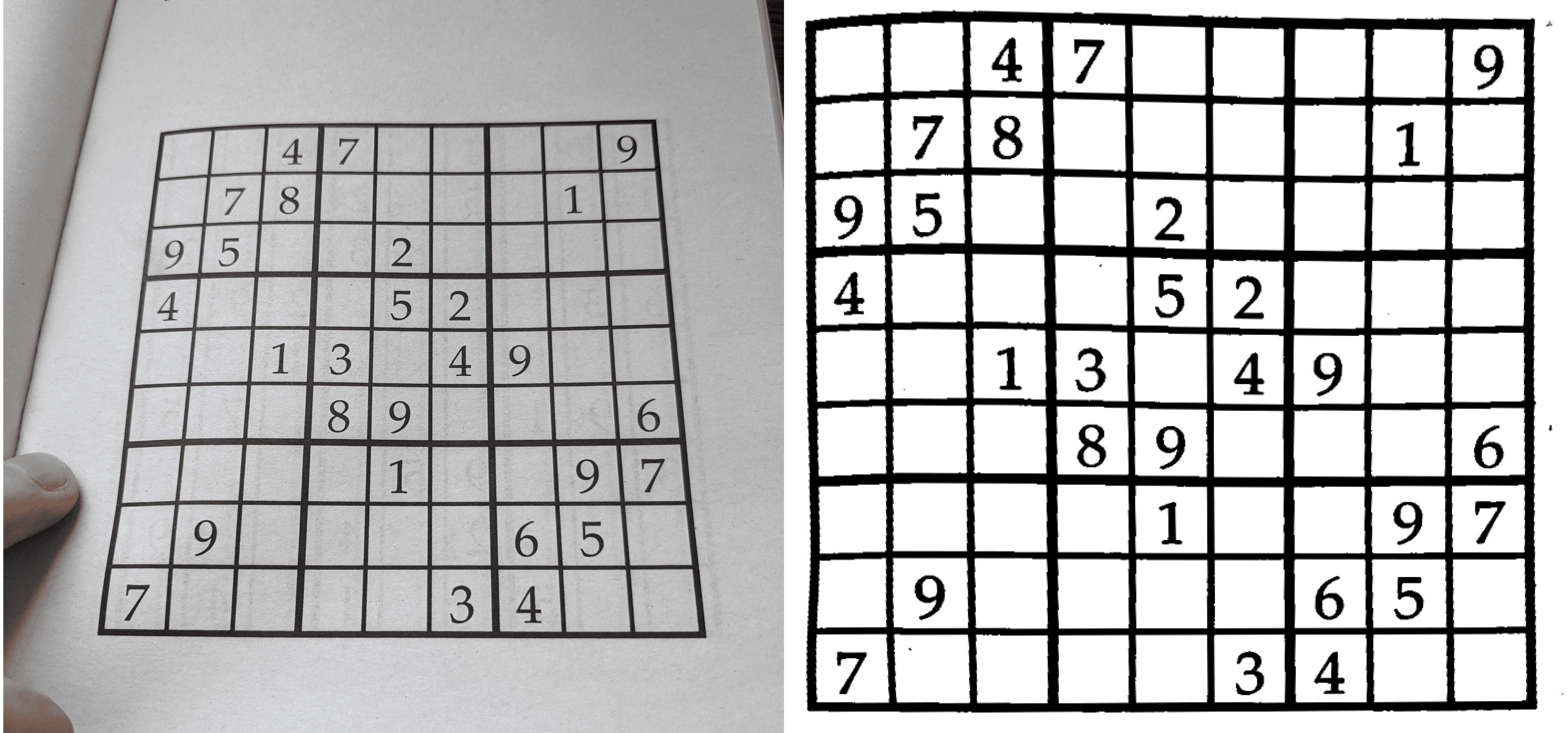

Before and after applying thresholding and perspective removal.

Extracting each cell in the grid

I need to extract each cell from the warped image to read their value when creating a 2D array of the sudoku grid. I apply the same methods that I used to find the sudoku grid.

Representing the sudoku grid as a 2D array

Retrieving the number in each cell

I have an image of all the 81 cells of the sudoku, corrected for perspective. Now I need to extract the number printed in each cell (if it exists). For this, I trained a k-nearest neighbours classifier on a subset of the cell images taken from the same sudoku book.

Each cell image was resized to a $28*28$ matrix and flattenned into a row of our example matrix $X$ . I labeled each cell image with the number in the cell, or $0$ if the cell was empty.

Demonstrating of the training process. For each cell image, I press the corresponding number on my keyboard. These data, alongside the cell image itself, are used for training the classifier.

I selected $k=5$ for the classifier. With a dataset of 1008 sudoku cells, with a $70:30$ split between the training and test dataset, the model achieved $100\%$ accuracy on the training and testing data. This high accuracy is a result of the model being trained on cells coming from the same sudoku book, leaving very little variance between each example.

Determining the row and column of each cell

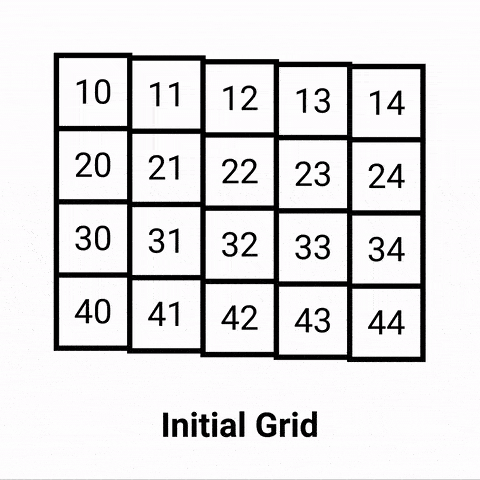

Visualizing the algorithm assigning a row to each cell in a 5 by 5 grid.The number in each cell represents the y-coordinate of the cell. Here, each cell has a small offset in the y-direction. Unique colors are assigned to each row.

I can determine which row and column each cell belongs to through a simple sort. Sorting cells by their

x

coordinate, the first nine cells are part of the first row, the next nine part of the second row, and so on. The same logic applies to the

y

values.

This logic works as I adjusted the sudoku grid for perspective in an earlier step. Hence, I assume that rows will remain roughly horizontal and columns roughly vertical.

Solving the sudoku

I used a backtracking algorithm to solve the sudoku. After retrieving a list of all empty cells of the sudoku grid, I test a number for each empty cell one by one. I first verify that the number is a valid move for this cell. If so, I use recursion to solve the sudoku given the guess I made for that initial empty cell. If no number is valid for a particular empty cell, I backtrack, testing a new value for the previous empty cell. This article provides a more thorough explanation of this process.

def solve(sudoku, empty_cells):
  """
  Create a solved sudoku grid using backtracking and recursion.
  Inspired from https://stackoverflow.com/a/58139570/2034508
  """
  if len(empty_cells) > 0:
      # Work on the first empty cell
      empty = empty_cells[0]
      (i, j) = empty

      # Test for a solution with numbers from 1 to 9
      for num in range(1, 10):
          # Skip invalid moves
          if not correct(num, j, i, sudoku):
              continue

          # If move is valid, set it, and solve the sudoku from there
          sudoku[i, j] = num
          if solve(sudoku, empty_cells[1:]):
              return True
          # If we reach this point, we could not solve the sudoku with that move
          # Reset, and try a different number
          sudoku[i, j] = 0

      # If we reach this point, we could not solve the sudoku with any number for that cell
      # Backtrack
      return False
  else:
      # If empty cell array is empty, we are done!
      return True

PYTHON

Using backtracking and recursion to solve sudoku represented as a 2D array.

Solving a sudoku, visualized.

Backtracking algorithms are usually equivalent to brute-force methods as most don't adopt any efficient heuristics. The algorithm I used is no different. However, for this project, it proved to be a relatively simple solution to solving sudoku.

Wrapping up

With the sudoku solved, I can then print the values of the solved grid back into the perspective corrected image. I then warp the solved sudoku image back into its original perspective using the inverse of the homography matrix found in the initial step.

Solving a sudoku, visualized.

You can find all the code for this small project in this Gist!
